The Wood Boilers

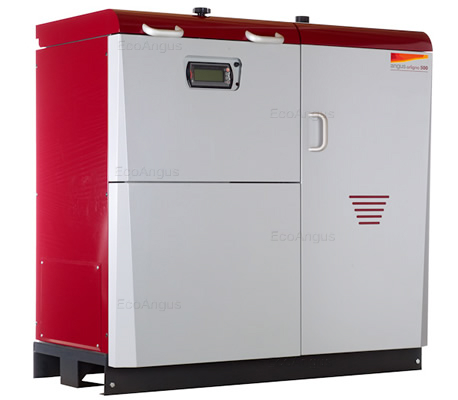

The Angus ORLIGNO 500 Pellet Boiler




Available in 1 model 25kW
Buy now £5385.00
(plus delivery and vat)

Please click here to view image gallery

The Angus Orligno 500 pellet boiler is one of the most highly efficient available. At 92% heat efficiency it is ideal for providing all your central heating and domestic hot water requirements.
They can take pellets from 6-8mm and length 10-50mm.
The output is rated from 7kW to 25kW.
It can heat a well insulated property up to 250m2.
The boiler comes with a 5 year warranty.
The pellets are burned up automatically and the pellet boiler has minimal ash output.
The Angus Orligno 500 can be incorporated directly into any heating system.
If the customer requires the boiler can be linked with a 500 litre accumulator tank.
This helps to reduce boiler cycle times which gives increased efficiency and extended service life to the boiler itself.
It also gives the customer a 500l instantaneous back up as a heat buffer for the colder months.
The pellet container is generously sized at 255 litres and enables a long burn time without the necessity to reload.
The pellet container is closed hermetically.
This can be 2 days at maximum output, 5 days on average output and 7 days on nominal output.
The boiler is fitted with a microprocessor controller and this enables the boiler to control the following functions;
-automatic control of the burning process
-ensure automatic burning up of the pellets
-overheating protection (turns off the fan and the pellet feeding mechanism)
-control of the circulating pump
-control of the hot water pump
-control of the accumulator tank
-maintaining the burn process
-protection against fumes exiting the flue at too high a temperature

The special burner in the Angus Orligno 500 allows it to work in adverse conditions. It has been designed to allow easy access to the
pellet feeding system incorporating all the positive features to ensure a reliable performance as follows;
-It integrates a fully effective burning process
-Designed so there will be no issues with blocking of the pellet feeders
-No fouling of the furnace in the ceramic combustion chamber
-Protected against backfire to the container
-Covered against blowing out of the fire

The automatic burning process is a great advantage of the Angus Orligno 500 for the customer and it is an important element in protecting the boiler and the whole installation against freezing.
These boilers typically run at 50% of the cost of oil or gas boilers and 30% of the cost of electric heating.
It is possible to incorporate the Angus Orligno 500 with alternative forms of biomass heating.
Pellets can be delivered in bags or in bulk and are stored in silos or tanks. Pellet boilers are ideal to fit retrospectively to properties and significantly lower the carbon footprint of a property.


Please click here to download a leaflet about this product (PDF files)



Please click here for Test Reports & Instruction Manuals


Please click for Boiler Commissioning Installer's Guide



Please click here to download the Eco Angus Ltd conditions of sale (PDF File)
