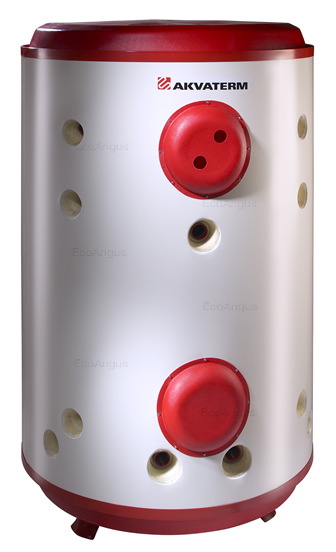

Akvaterm Standard Accumulator Tank
Standard steel tanks are available with capacities ranging from 300 litres to 10000 litres. The insulation is 150mm seamless polyurethane up to and including 2000l and 100mm seamless polyurethane above 2000l and all tanks are faced with a white faced cover.

Detachable side panels are also an optional extra. An uninsulated accumulator tank coated with corrosion protection paint can also be delivered. The upper hatch has a hot water coil 35 litres/minute fitted as standard.

A domestic hot water pre-heating coil, a solar heating coil and other coils can be placed in the lower hatch.

There are 2” couplings for the electrical resistors located at centre and bottom of the tank. Built-in guide pipes ensure the proper layering of heat.

The standard domestic hot water coil size is LK35 but other coils with flow rates LK45/60/80/100/120 are available on request. The standard pressure class is 3.0 Bar but the tanks are also available in 4.0 Bar and 6.0 Bar on request.
MODEL
DIAMETER
mm
HEIGHT
mm
WEIGHT
kg
CONNECTIONS
SIZE (ID 2/5)
RESISTOR
COUPLINGS
AKVA 300 EK
810
2100
130
1 1/4"
2
AKVA 500 EK
900
2100
155
1 1/4"
2
AKVA 750 EK
1050
2100
200
1 1/4"
2
AKVA 1000 EK
1150
2150
230
1 1/4"
2
AKVA 1500 EK
1350
2200
280
1 1/4"
3
AKVA 2000 EK
1500
2250
330
1 1/4"
4
AKVA 2500 EK
1500
2250
360
2"
4
AKVA 3000 EK
1600
2300
400
2"
4
AKVA 4000 EK
1800
2450
480
2"
6
AKVA 5000 EK
2000
2500
600
2"
6
AKVA 6000 EK
2150
2500
750
2"
6
AKVA 7500 EK
2150
3000
900
2"
6
AKVA 10000 EK
2150
3800
1100
2"
6


EK = Insulated and with 1 x DHW coil
E = Insulated but with no coils
Diameter of tank 300 mm smaller without seamless polyurethane up to and including 2000l and 200mm small for tanks greater than 2000l capacity.

1. Hatch (2 pcsl) Ø 200 mm
2. Heating Circuit Unit + Guide Pipe 1 1/4 "
3. Drain coupling
1 "
4. Thermometer/Thermostat Unit (4 pcs)
3/4 "
5. Tank Unit + Guide Pipe
1 1/4 "
6. Electrical Resistor Unit (2-4 pcs)
2 "
7. Domestic hot water coil, finned copper Ø 22 mm
Capacity, standard 35 l/min, +5° C/+55° C/+75° C
Structural pressure
3/4 ", M
90 kW
10 bar
8. Pressure Relief / Air Bleeder 1 "
9. Polyurethane Insulation
150mm/100 mm
10. Coating, coated galvanized tin sheet
0,5 mm
11. Tank: maximum structural pressure
maximum temperature
1,5 bar
+110° C
